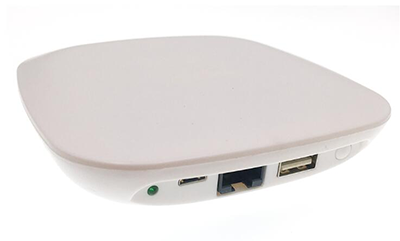

BLE Bluetooth gateway is a kind of product which integrates 4.0 BLE and 5.0 BLE.
The BLE Gateway Router can scan unlimited broadcast all the time and connect 5pcs BLE device to transmit data. It is often used in home medical monitoring between user and doctor.
|
Product information
|
Bluetooth version |
BLE 5.0/4.0/4.1/4.2
|
Authentication |
support Bluetooth safety certification
|
Overall dimension |
106mm * 106mm * 30mm(4.17*4.17*1.81 in) |
Frequency range |
2.400G ~ 2.483GHz
|
Bluetooth protocol |
LC, LM, L2CAP, GATT, SDP, RFCOMM
|
Support |
Support point to multi-point wireless connection
|
Network |
30M adaptive network
|
Internet |
RJ45/WiFi
|
Average power consumption |
120mA@5V
|
|
|
|
Class1 Bluetooth module
10M/100M adaptive network
Automatically assign IP address
Scans unlimited broadcasting
|
Product information
|
Bluetooth profile |
Bluetooth V5.0 specification
|
Type |
BTP106-SS |
Overall dimension |
16cm * 16cm * 5cm(6.3 * 6.3 * 1.97 in)
|
Frequency range |
2.402G ~ 2.480GHz
|
Bluetooth protocol |
LC、LM、L2CAP、ATT、GATT
|
Authentication |
Support WiFi security authentication |
Internet protocols |
TCP/IP, DHCP
|
Maximum scan range |
150M in open air
|
|
|
|
BLE5.0 smart gateway can automatically connect target slave device without scanning to find device; thus saving scanning and connecting time.
User can pre-set data communication UUIDs, so device connection and data communication will be faster and smarter.
|
Product information
|
Bluetooth profile |
Bluetooth V5.0 specification
|
Bluetooth Chipset |
nRF52832 |
Overall dimension |
20cm * 12cm * 4cm(7.87*4.72*1.57 in)
|
Frequency range |
2.402G ~ 2.483GHz
|
Bluetooth protocol |
LM, LC, LL, SMP, L2CAP, ATT, GAP, GATT, SDP, RFCOMM
|
Network |
RJ45/WiFi |
Network protocols |
TCP/IP, DHCP
|
Authentication |
Support Bluetooth security authentication
|
|
|
|

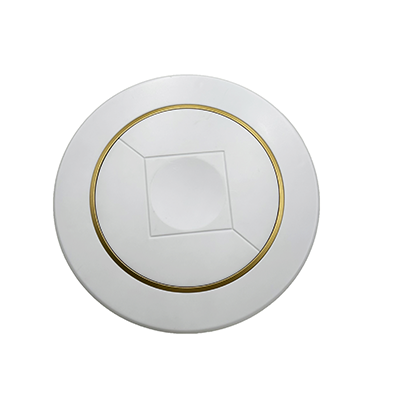

Automatic scanning
Support various devices
After powered the gateway and built TCP connection with server, the gateway will automatically scan surrounding BLE device.
|
Product information
|
Bluetooth Chipset |
nRF52832 |
Overall dimension |
106mm * 106mm * 30mm(4.17*4.17*1.81 in) |
Bluetooth profile |
Bluetooth V5.0 specification
|
Frequency range |
2.402G ~ 2.483GHz
|
Max Scanning Range |
30 m in open air |
Bluetooth protocol |
LM, LC, L2CAP, ATT, GATT
|
Max Scanning Number |
300 pieces broadcasting in 1 seconds
|
|
|
|

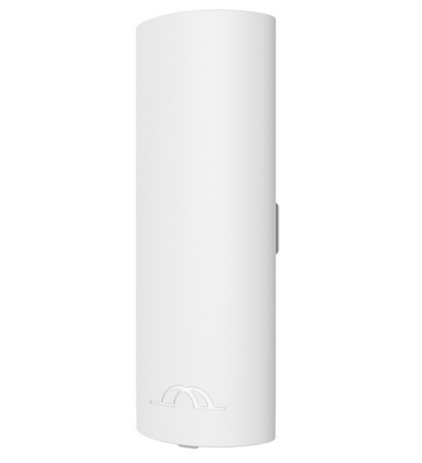

Long range Bluetooth gateway (indoor/outdoor)
Industrial Bluetooth gateway
Multi direction signal transmission
|
Product information
|
Network |
1. RJ45 Connector
2. 10M/100M adaptive
|
Overall dimension |
30cm * 10cm * 5cm
|
Bluetooth profile |
Bluetooth V5.0 specification
|
Frequency range |
2.402G ~ 2.480GHz
|
Bluetooth protocol |
LC、LM、L2CAP、ATT、GATT
|
Authentication |
Support Wifi security authentication
|
|
|
|

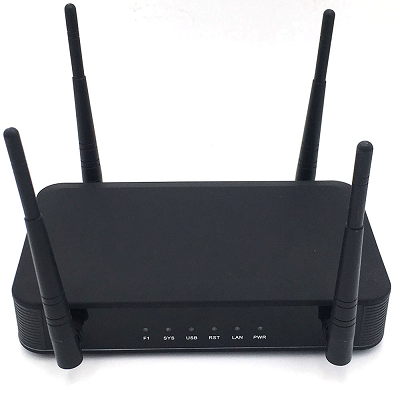

High-performance industrial grade Processor design
4G and 5G functions can also be added (optional)
Industrial field application
|
Product information
|
Network Interface |
WAN/LAN *2 |
Overall dimension |
220mm*124mm*30mm(8.66in*4.88in*1.18in)
|
Wireless Protocol |
WiFi/Bluetooth
|
Operation Temperature |
-20℃ ~ 55℃
|
Storage Temperature |
-40℃ ~ 58℃
|
Antenna |
WiFi/Bluetooth External rubber rod antenna
|
CPU |
MIPS24KEc 580MHz
|
|
|
|
The longest coverage 200 meters in open environment
It can be flexibly used for various application fields of WiFi+ Bluetooth, such as remote control of BLE Bluetooth device
Equipped with explosion proof enclosure
|
Product information
|
Bluetooth Specification |
Bluetooth V5.0
|
Overall dimension |
160mm*110mm*60mm(6.3*4.33*2.36in)
|
Frequency range |
2.400 ~ 2.483GHz
|
Bluetooth protocol |
LC, LM, L2CAP, GATT, SDP, RFCOMM
|
Authentication |
Support Bluetooth safety certification
|
Support |
Support point to multi-point wireless connection |
System |
Linux
|
Internet |
RJ45 |
Average power consumption |
120mA@12V |
|
|
|
High-performance industrial grade Processor design
4G and 5G functions can also be added (optional)
Industrial field application
|
Product information
|
Type |
BTMG02
|
Overall dimension |
220mm*124mm*30mm(8.66in*4.88in*1.18in)
|
Wireless Interfaces |
Wi-Fi/Bluetooth |
CPU |
MIPS24KEc 580MHz
|
System |
ARM-Linux
|
RAM |
DDR2 128MB
|
eMMC |
32MB
|
|
|
|
