30M (98.43ft) BLE5.0 Gateway Router

BLE gateway is a kind of product which integrates 4.0 BLE and 5.0 BLE. Built-in core processor supports the router to connect 5 devices and transmit data at the same time.

When Bluetooth router searches BLE devices, it will send around device’s MAC address, device name, broadcasting type, broadcasting contents and also real time signal strength.
Same device’s information can be returned once according to customers’ command during scanning process, it can also be returned according to the real time scanning conditions.


  • Easy internet connection
  • Flexible device scanning
  • Support Bluetooth devices if all the versions
  • Low cost, high speed internet access
  • Safe, easy to install and manage
  • Automatically distributes IP address
  • Support Bluetooth data encryption
  • Embedded system
  • 400MIPS High-performance processor







  • The gateway is powered by 5V Micro USB.

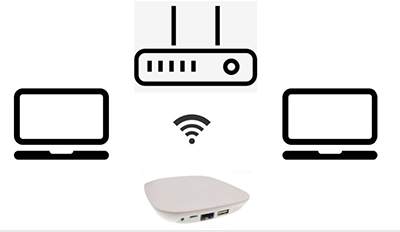

  • Follow the picture of network accesses, plug cable into BLE gateway LAN port.

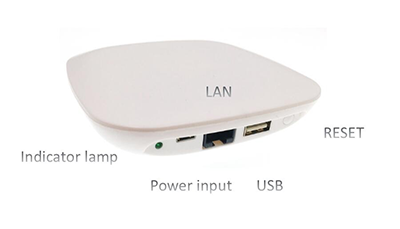

  • There are 3 indicate lights in gateway surface. Red, green and blue.

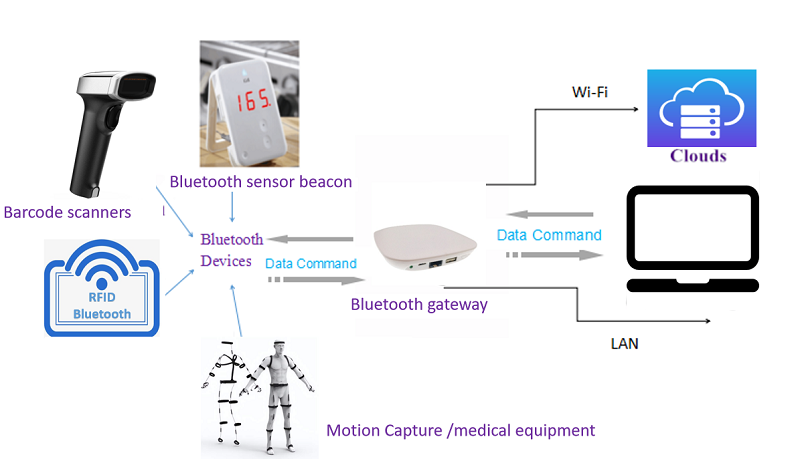

The Bluetooth gateway can be flexibly applied to various Bluetooth application scenarios, and its advantages include low power consumption, low cost, and universality, Connect Bluetooth gateway to StarLink Internet, barcode scanner, sensor, RFID, water/gas meters, industrial measuring device.

Database


Bluetooth version BLE 5.0/4.0/4.1/4.2
Working Frequency 2.400G ~ 2.483GHz
Antenna External antenna
Support Support point to multi-point wireless connection
Achieved Bluetooth Protocol LC, LM, L2CAP, GATT, SDP, RFCOMM
Automatically distributes IP address Automatically distributes IP address
Authentication Support Bluetooth safety certification
Average power consumption 120mA@5V
Internet RJ45/WiFi
Authentication support Bluetooth safety certification
Network 30M adaptive network
Achieved internet protocol TCP/IP, HTTP, FTP, ARP, DHCP, PPP, etc.

Mode list


BTP108 BTP108-S BTP108-SS
BLE5.0 Gateway BLE5.0 Gateway BLE5.0 Gateway
Connect 5 BLE devices Connect 20 BLE devices Connect 20 BLE devices
30M 30M 100M
Linux system
Scans unlimited broadcasting
