Industrial Bluetooth gateway

This Bluetooth gateway can scan the beacon, collect the beacon's broadcasting information such as UUID, name and RSSI, and then send the data packet to the local or cloud server via RJ45 cable or WiFi.

Automatic scanning
After powered the gateway and built TCP connection with server, the gateway will automatically scan surrounding BLE device. And upload MAC address device name, broadcasting type, broadcasting content and in time signal power to server.
Support various devices
It can monitor the device conforms to the BLE standard.
Low operating cost
Bluetooth applied to the worldwide open 2.4G band, so its operating cost is almost to zero.

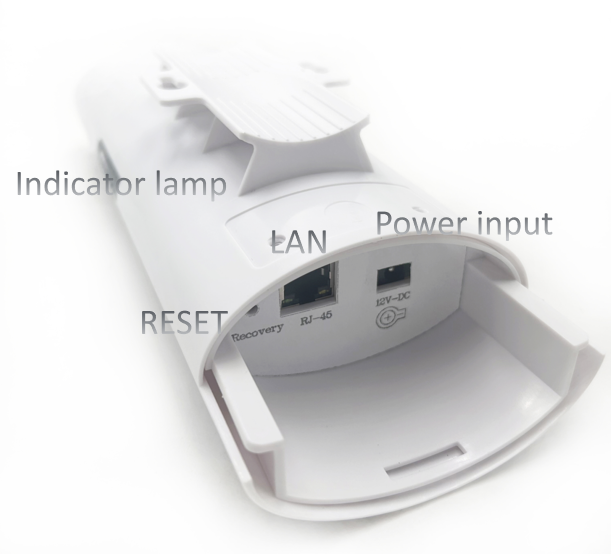

Overview



  • The red light is the system indicator light
  • The green light is the network connection indicator light
  • The blue light is the Bluetooth working status indicator light
  • 12V 1A power






Database


Bluetooth version BLE 5.0
Working Frequency 2.402G ~ 2.483GHz
Antenna Embedded antenna
Bluetooth Chipset nRF52832
Max Scanning Range 100 m in open air
Max Connection Number 5pcs BLE devices
Authentication Support WiFi security authentication
Network RJ45/WiFi
Average power consumption 130mA, peak power consumption is 500mA(Using WiFi)
Working Temperature -20℃ ~ +65℃
Power Supply 12V 1A USB charging
Wireless IEEE 802.11b /g/n
Network Protocol TCP/IP, DHCP
Bluetooth Protocol LC, LM, L2CAP, ATT, GATT
