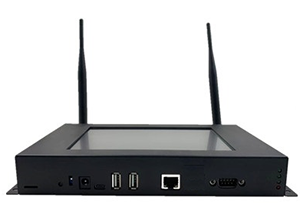

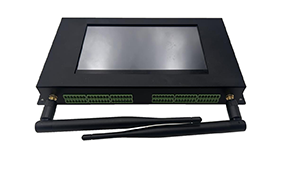

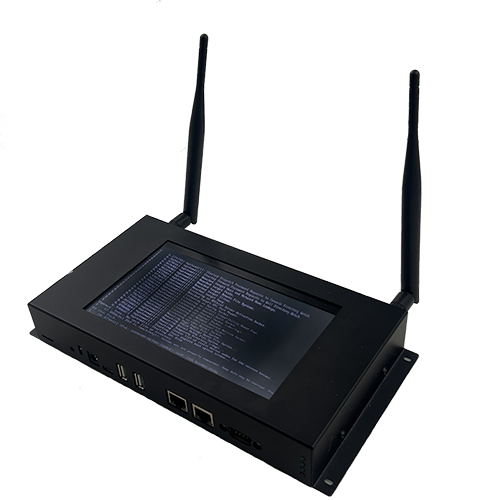

Industrial Gateway (screen)
Industrial gateway adopts high-performance industrial grade Processor design, including Ethernet, CANbus, 485, RS232, WIFI, Bluetooth, USB, I2C, I2S, SPI, relay output,display screen and other interfaces.
It is especially suitable for industrial field application needs, and can also be used as the gateway of the Internet of Things in the field of the Internet of Things. If necessary, 4G and 5G functions can also be added (optional).
Intelligent factories, equipment manufacturers, environmental monitoring, energy monitoring, smart cities, smart agriculture, intelligent aquaculture, intelligent buildings, Connect Bluetooth gateway to StarLink Internet.

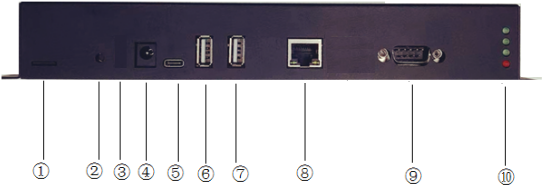

Overview
| Ref# | Description | |
| 1 | MicroSD card slot | |
| 2 | Button, default firmware design as reset button, user can customize | |
| 3 | Start mode selection switch | |
| 4 | Power socket;12V,Inner positive and outer negative | |
| 5 | Type-C USB debugging serial port | |
| 6 | USB 0 connecto | |
| 7 | USB 1 connector | |
| 8 | Ethernet ETH 0 connector | |
| 9 | RS232 male connector | |
| 10 | Indicator light group | |

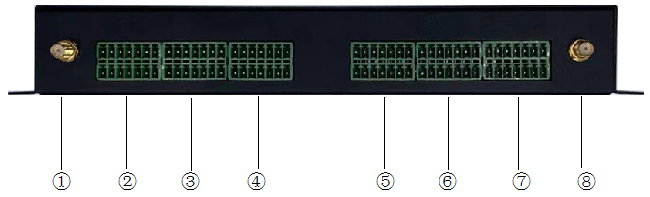

Rear side interfaces overview |
||
|
||
| Ref# | Description | |
| 1 | Antenna connector for 2.4 GHz Bluetooth | |
| 2 | 1# Digital I/Os connector | |
| 3 | 2# Digital I/Os connector | |
| 4 | 3# Digital I/Os connector | |
| 5 | 4# Digital I/Os connector | |
| 6 | 5# Digital I/Os connector | |
| 7 | 6# Digital I/Os connector | |
| 8 | Antenna connector for 2.4 GHz Wi-Fi | |

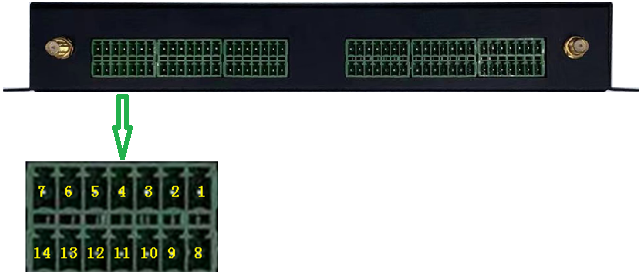

Digital I/Os connector Pin number definition |
||
|
||
|
Please refer to the interface detailed definition section for the specific definition of each pin in the Digital I/Os connector. |
||
Connector specifications:
Mating connector specifications:
|
||
Database
| Specifications | ||
| Operating System | OpenWrt(linux) | |
| Processor | MT7688AN 580MHz with 64 KB ICache and 32 KB D-Cache | |
| Memory | RAM | DDR2 128MB |
| Storage | Embedded | 32MB |
| Ethernet | 2 x 10M/100M Ethernet on RJ45 connectors | |
| USB | 2 x Host 2.0 ;1 x debugging interface | |
| Serial | 2 x RS-232 | |
| 1 x TTL UART | ||
| 1 x RS-485 | ||
| CAN | 1 x CAN | |
| I2C | 1 x I2C | |
| SPI | 1 x SPI | |
| I2S | 1 x I2S | |
| TF Card | 1 x TF Card | |
| Relay | 4 x Relay | |
| LED | 4 x LED | |
| Button | 1 x Button | |
| Wired Interfaces | Expansion | Yes, for Side Expansion Modules |
| Wireless Interfaces | Wi-Fi/Bluetooth | 802.11a,b,g,n / BT 4.2 |
| Antennas (external) | 1 x wifi; 1 x Bluetooth | |
| RTC | Yes (backup supercap) | |
| Watchdog | Yes (system level) | |
| Power | Inuput | 12V,2A |
| Consumption | 4W typical; 16W maximum | |
| liquid crystal display screen | ||
| material quality | TFT | |
| resolution ratio | 800 * 480 | |
| colour | 260 thousand | |
| Dot Pitch | 0.1926mm * 0.1790mm | |
| Size | 154.08mm(H) * 85.92mm(7.0 inch) | |
| LED Backlight | Yes | |
| Operating Temperature | -40 to +70 °C | |
| Storage Temperature | -40 to +85 °C | |
| Environment | Relative Humidity | 5 to 95% (non-condensing) at +40°C |
| Product size | 24cm * 13cm * 4cm | |
