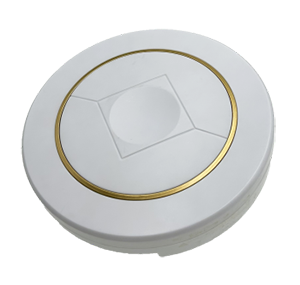

BLE5.0 Long Range Scan Gateway

Automatic scanning

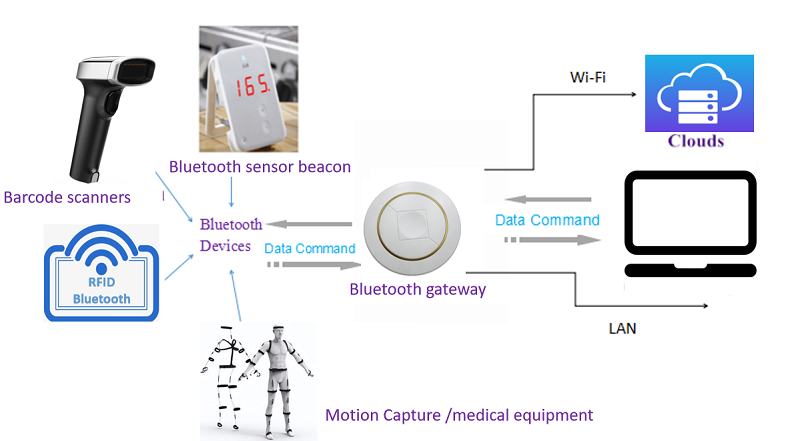

After powered the gateway and built TCP connection with server, the gateway will automatically scan surrounding BLE device.
And upload MAC address device name, broadcasting type, broadcasting content and in time signal power to server.

Support various devices
It can monitor the device conforms to the BLE standard.
Low operating cost
Bluetooth applied to the worldwide open 2.4G band, so its operating cost is almost to zero.

Overview

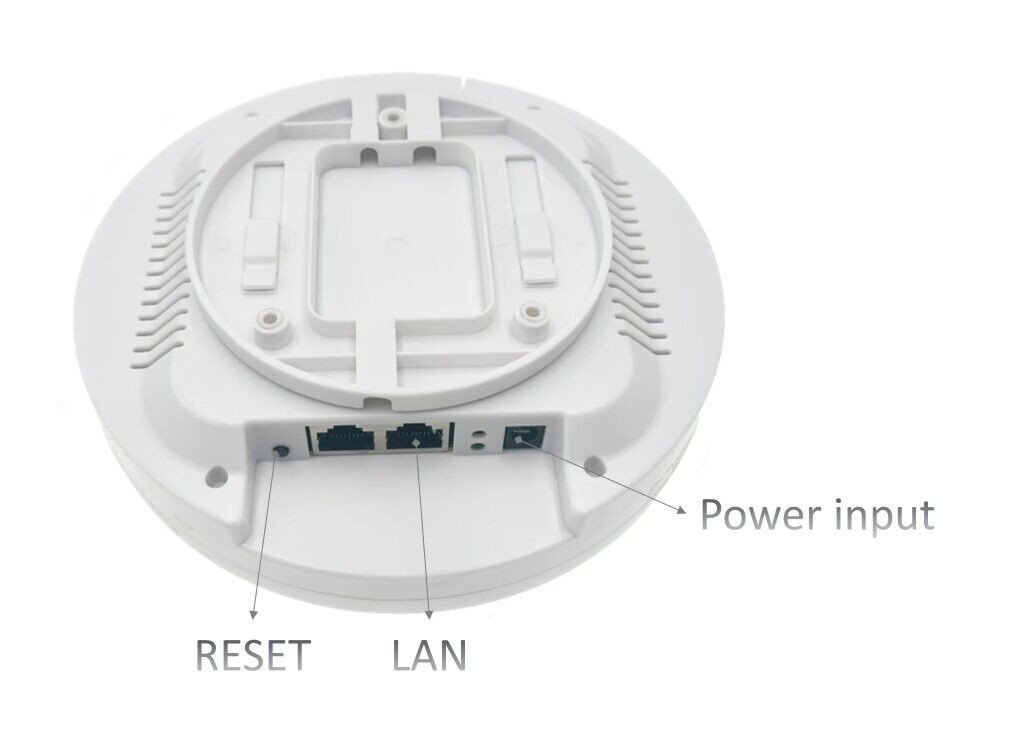

  • 5V 1A power adapter

  • LAN:Insert the network cable into the Bluetooth gateway LAN port to connect the Bluetooth gateway to a local area network

  • Reset:Restore to factory default values

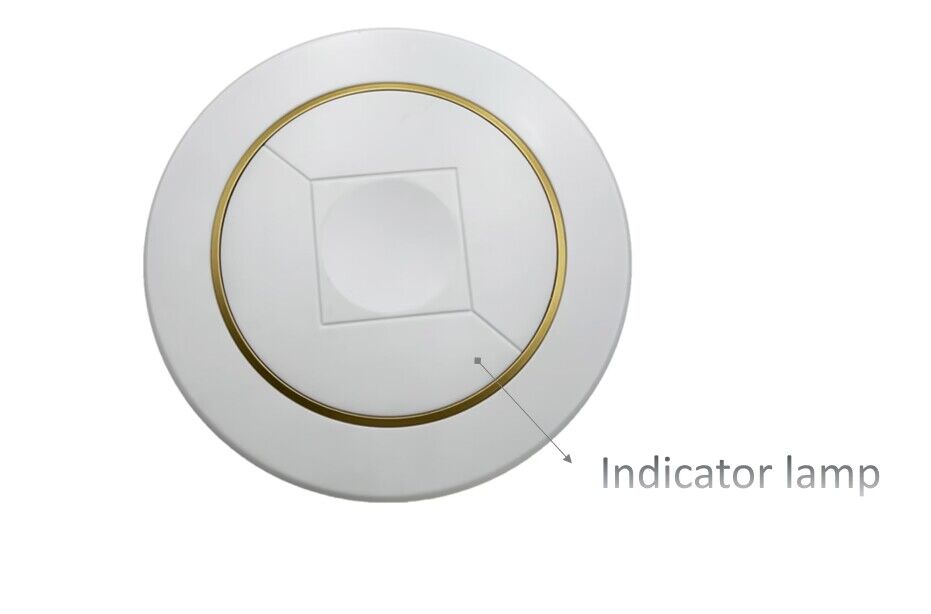

  • There are three colors of indicator lights on the gateway

  • The red light is the system indicator light

  • The green light is the network connection indicator light

  • The blue light is the Bluetooth working status indicator light




Database


Bluetooth standard Bluetooth V5.0 standard
Type BTMG02
Overall dimension 220mm*124mm*30mm(8.66in*4.88in*1.18in)
Bluetooth specification Class1 Bluetooth module
Frequency range 2.402G ~ 2.480GHz
Bluetooth Protocol LM, LC, L2CAP, GATT, ATT
Internet protocol TCP/IP, DHCP
Authentication Support WiFi security authentication
Internet RJ45 port
Maximum scan range 150M in open air
Average power consumption 130mA@5V, peak value 500mA (using WiFi)
Automatically distributes IP address Automatically distributes IP address
Working temperature -20~65℃
