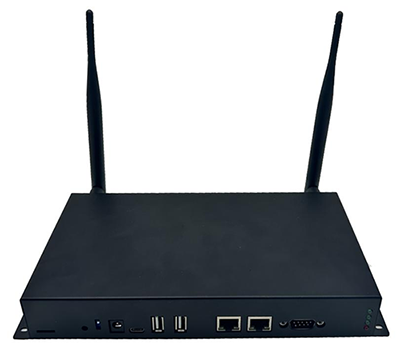

Industrial Gateway
Industrial Gateway supports the collection of various industrial equipment data such as PLC, instruments, sensors, water, gas and electricity meters, power equipment, CNC, etc.
It is a highly reliable industrial intelligent gateway with protocol analysis and edge computing, and is the core edge node for building the Industrial Internet system.
Intelligent factories, equipment manufacturers, environmental monitoring, energy monitoring, smart cities, smart agriculture, intelligent aquaculture, intelligent buildings, Connect Bluetooth gateway to StarLink Internet.
|
|
|

|
||
Database
| Type | BTMG01 |
| Size | 220mm*124mm*30mm(8.66*4.88*1.18 in) |
| Power | DC 12V, 2-Pins Cresnet interface |

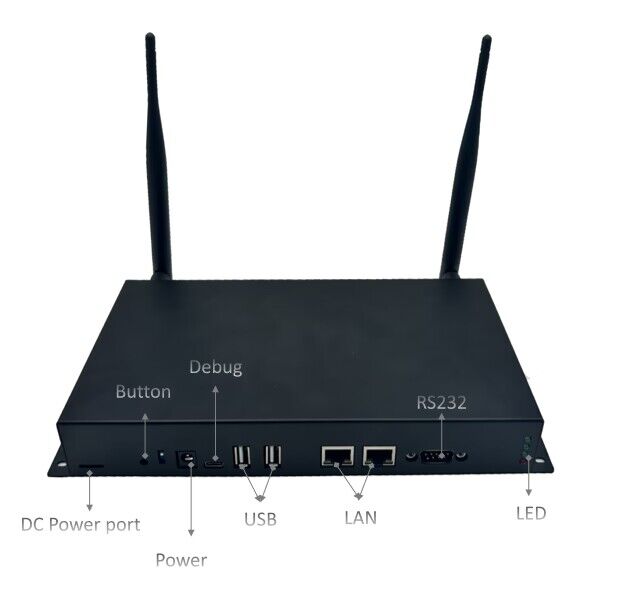

| Network Interface | WAN/LAN *2 |
| USB | USB 2.0 |
| SIM Card | Micro SIM card |
| Wireless Protocol | WiFi/Bluetooth |
| Antenna | WiFi/Bluetooth External rubber rod antenna |
| Installation | Wall mounting, Ceiling mounting DIN |
| Operation Temperature | -20℃ ~ 55℃ |
| Storage Temperature | -40℃ ~ 58℃ |
| Operating Humidity | 10 ~ 95%（Non condensing） |
| Storage Humidity | 5 ~ 95%（Non condensing） |
| IP Grade | IP22 |
| Burial | Iron |
| Technical Specification | |
| CPU | MIPS24KEc 580MHz |
| System | ARM-Linux |
| RAM | DDR2 128MB |
| eMMC | 32MB |
| Wi-Fi Performance | • IEEE wireless LAN standard: |
| • IEEE802.11n;IEEE802.11g;IEEE 802.11b | |
| • Data Rate: | |
| IEEE 802.11b Standard Mode: 1, 2, 5.5, 11Mbps | |
| IEEE 802.11g Standard Mode: 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| IEEE 802.11n: MCS0 ~ MCS7 @ HT20/ 2.4GHz band | |
| • Sensitivity: | |
| HT40 MCS7: -70dBm@10% PER (MCS7) /2.4GHz band | |
| HT20 MCS7: -71dBm@10% PER (MCS7) /2.4GHz band | |
| • Transmit Power: | |
| IEEE 802.11n: 17dBm @HT20/40 MCS7 /2.4GHz band | |
| IEEE 802.11g: 17dBm @54MHz | |
| IEEE 802.11b: 20dBm @11MHz | |
| • Wireless Security: WPA/WPA2, WEP, TKIP, and AES | |
| • Working mode: Bridge, Gateway, AP field | |
| • Transmit: 50 meters minimum, open field | |
| • Transmit Power: 20dBm | |
| • Highest Transmission: 150Mbps | |
| • Frequency offset: +/- 50KHZ | |
| • Frequency Range (MHz): 2412.0~2483.5 | |
| • Low Frequency (MHz): 2400 | |
| • High Frequency (MHz): 2483.5 | |
| • E.i.r.p(Equivalent Isotopically Radiated power)(mW) < 100mW | |
| • Bandwidth(MHz): 20MHz/40MHz | |
| • Modulation: BPSK/QPSK, FHSSCCK/DSSS, 64QAM/OFDM |
