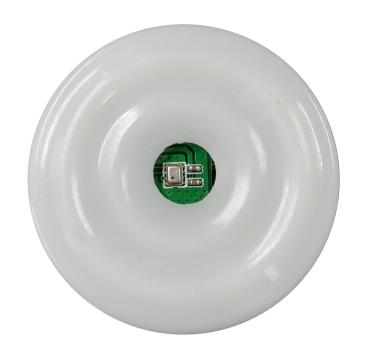

Agricultural Sensor Beacon
It can send data (data of temperature, humidity, light intensity and ultraviolet collected from ambient environment) to a mobile phone or gateway by beacon broadcast. After connected, it can keep getting those information.
- Used in goods storage, such as electronic products, food, wine, leather and fur clothing etc.
- Used in smart farm, such as plants cultivation and animal breeding.
- Used in climate monitoring.
- Used in daily life. For example, you can use it with humidifier or air-conditioner. Then you can create a good environment in your daily life.
- Used in freezing transportation.
- Used in logistics tracking, greenhouse, buildings, baby house, hospitals, etc.

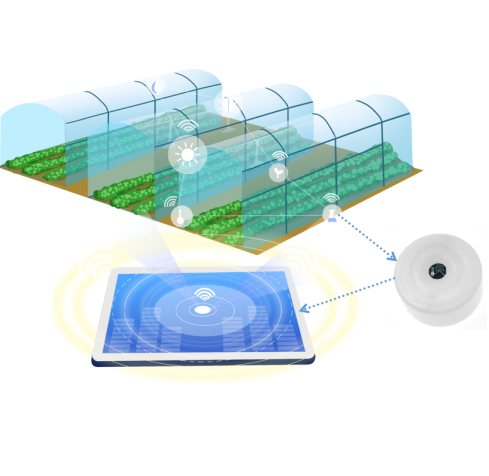

The system includes ble Bluetooth gateway, beacon sensor, cloud server and other components. Through this system, you can monitor the temperature, humidity, light, ultraviolet intensity and other environmental data in the specified scene in real time, and set the relevant alarm threshold to realize real-time alarm and precise control.
It integrates PC background management system, Bluetooth gateway and beacon sensor equipment, including temperature, humidity, light, ultraviolet and other sensors independently developed by jinou technology, which can realize monitoring and management in various application scenarios.Real time monitoring of air temperature, humidity, light and other data, and by setting the relevant alarm threshold, real-time alarm, accurate control of planting environment indicators.
Database
Name | Agricultural Sensor Beacon | |
Bluetooth standard | V5.0 BLE | |
Size | 35.5mm*18mm(1.39*0.7 in) | |
Working band | ISM 2.400 ~ 2.483GHz | |
Spread spectrum method | FHSS | |

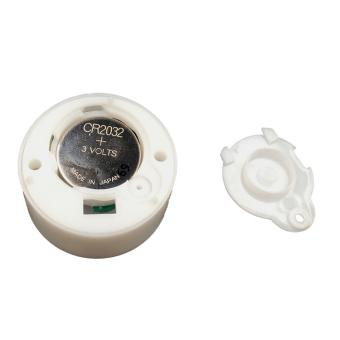

Voltage | 2.7V-3.3V | |
Tx Power | 0dBm | |
Transmission range | 15m | |
Operating temperature | -40゜C ~ 85゜C | |
Storage temperature | -55゜C ~ +125゜C | |
Standby current of connecting Bluetooth | approximate 0.2mA | |
Antenna specification | 2.4G, 50Ohm | |
Safety standard | AES 128bit | |
Temperature measure range | -40℃~ + 85℃ | |
Temperature measure accuracy | ±0.5゜C between 15゜C ~ +40゜C | |
±1゜C between -40゜C ~ +85゜C | ||
Relative humidity measure range | 0 ~ 100% | |
Humidity accuracy | ±4.5% RH between 20~+80% RH | |
Ultraviolet measurement range | 0 ~ 15 | |
Light intensity measurement range | 0 ~ 83886.08 lx |
