6-Axis Accelerometer Sensor
|
|
|||||||||||
The 6-axis accelerometer product integrates accelerometer, gyroscope and other sensor chips.
The 6 axes in the product name include the X-axis, Y-axis, and Z-axis of the accelerometer, the X-axis, Y-axis, and Z-axis of the gyroscope angular velocity sensor, collectively referred to as 6 axes.
Built-in antenna, effective distance can reach 30 meters in empty space
Comply with FCC, CE, ROSH, etc.
Precise display of signal strength
Accelerometer testing function
Settable collecting frequency and collecting range
 |

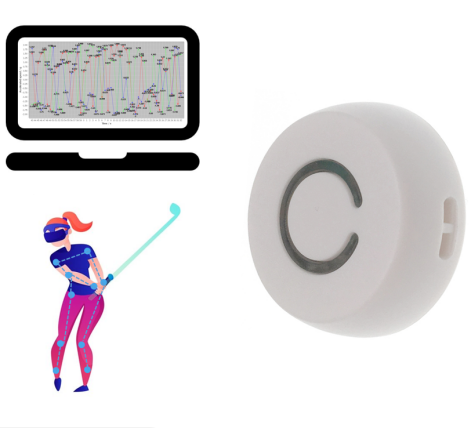

Motion sensor suit High precision motion sensor Low latency wireless transmission Data analysis Software Real-time Visualization |
- Bluetooth Version: 5.0 BLE
- Built-in antenna with a range of up to 30 meters in an open area
- Complies with FCC, CE, ROSH, and other certifications
- Accurately displays signal strength
- Includes accelerometer, gyroscope, and magnetometer data acquisition function
- Supports the collection of data from individual sensors or multiple sensors simultaneously
- Supports real-time and offline collection of sensor data Sampling frequency and range of accelerometer, gyroscopic angular velocity, and magnetometer data can be set
Database
| Name | 6-Axis Accelerometer Sensor Beacon | |
| Bluetooth standard | V5.0 BLE | |
| Size | 34mm*10mm(1.34 * 0.39in) | |
| Working band | ISM band 2.402 ~ 2.480GHz | |
| Spread spectrum method | FHSS | |
| Voltage | 2.7V ~ 3.3V | |

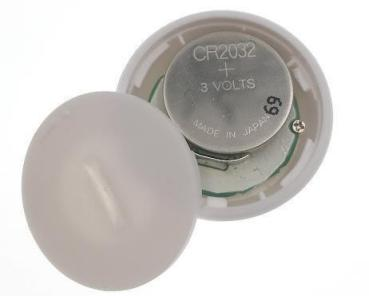

| Battery | CR2032 | |
| Tx Power | 0dBm | |
| Transmission range | 10 ~ 30m | |
| Operating temperature | -40゜C ~ 85゜C | |
| Storage temperature | -55゜C ~ +125゜C | |
| Antenna specification | 2.4G, 50 Ohm | |
| Safety standard | AES 128bit | |
| Acceleration collection range | -2g~+2g /-4g~+4g/-8g~+8g/ -16g~+16g | |
| Angular velocity collection range | 250dps, 500dps, 1000dps, or 2000dps | |
| Measurement accuracy | 1% | |
| Range of accelerometer and gyroscope | -32768 ~ +32767 | |
The factory defaulted setting: data collection interval is 1 second, turn on the accelerator, and turn off the gyroscope.
| Working State | Power consumption(mA) | |
| Broadcast (The fixed Interval is 1 second) | 60uA | |
| Connect the Bluetooth to turn on the accelerometer | 0.2mA | |
| Connect the Bluetooth to turn on the accelerometer and gyroscope | 0.5mA | |
