Product information
|
| Bluetooth Specification |
Bluetooth 5.0 BLE |
| Size |
3.94*1.57*1.97 inch |
| Working band |
ISM 2.402 ~ 2.480GHz |
| Antenna |
External antenna |
| Protocol |
LL、SMP、L2CAP、ATT、GAP、GATT |
| Effective Distance |
150m |
| Maximum transmission rate |
20Kbytes/Sec |
| Baud rate |
1.2K~230.4Kbps |
|
|
|
|
|
|
Product information
|
| Bluetooth Specification |
Compatible with Bluetooth 3.0 |
| Size |
3.94*1.57*1.97 inch |
| Working band |
ISM 2.400 ~ 2.483GHz |
| Antenna |
Internal Antenna |
| Protocol |
LM、LC、L2cap、SDP、RFCOMM |
| Effective Distance |
10m |
| Maximum connection |
Up to 7 slave devices can be connected simultaneously |
| Baud rate |
1.2K ~ 1382.4Kbps |
|
|
|
|
|
|
Product information
|
| Bluetooth Specification |
Compatible with Bluetooth 3.0 |
| Size |
3.94*1.57*1.97 inch |
| Working band |
ISM 2.400 ~ 2.483GHz |
| Antenna |
External antenna |
| Protocol |
LM、LC、L2cap、SDP、RFCOMM |
| Effective Distance |
100m |
| Maximum connection |
Up to 7 slave devices can be connected simultaneously |
| Baud rate |
1.2K~1382.4Kbps |
|
|
|
|
|
Bluetooth CAN adapter is bridge product that connect industrial field CANBUS to Bluetooth network
As a replacement solution of cable, it can transfer CANBUS data to Bluetooth wireless net work.
|
Product information |
| Bluetooth profile |
BLE 5.0 |
| Size |
99mm*34mm*17mm |
| Working band |
ISM 2.400～2.483GHz |
| Signal pin |
CAN-H, CAN-L，GND |
| Protocol |
LL、SMP、L2CAP、ATT、GAP、GATT |
| Signal pin |
RXD, TXD, RTS, CTS, GND |
| Maximum working distance |
10m in open air |
| Supported CAN baud rate |
15K~1M |
|
|
|
|
|
Conversion from serial can / RS485 / RS232 to Bluetooth wireless network.
Multiple data conversion modes.
Configure parameters through Bluetooth.
|
Product information
|
| Bluetooth Specification |
Bluetooth 5.0 BLE
|
| Size |
70*70*80mm |
| Working band |
ISM 2.400～2.483GHz
|
| Antenna |
Internal Antenna
|
| Protocol |
LL、SMP、L2CAP、ATT、GAP、GATT
|
| Effective Distance |
100M in open air |
| Security |
Security authentication, data encryption |
| Receiving sensitivity |
< -95dBm at < 0.1% BER |
|
|
|
|
|

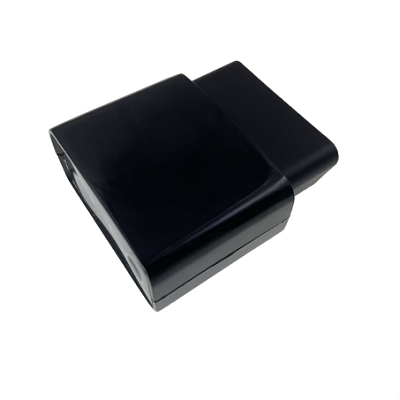

BLE OBD adapter is a bridge product for transferring automotive OBD signals to Bluetooth wireless network.
The ble main equipment can communicate with the vehicle through the BLE OBD adapter to query the vehicle working status and various data.
|
Product information
|
| Bluetooth Specification |
Bluetooth V5.0 |
| RF output power |
CLASS 2 standard |
| Working band |
ISM 2.400～2.483GHz
|
| Antenna |
Built in antenna |
| Protocol |
LL, SMP, L2CAP, ATT, GAP, GATT
|
| Maximum working distance |
Wide Open Spaces 20M |
| Working mode |
Slave mode |
| Max transmission rate |
20Kbytes/Sec |
|
|
|
|
|

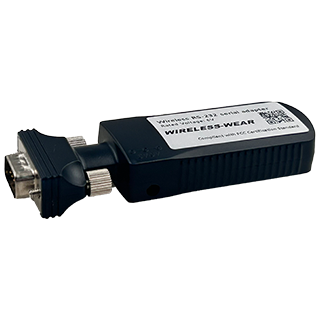

This product can connect to equipment via RS233 port, to implement wireless data transmission between equipment and remote Bluetooth device.
It supports the latest Bluetooth 5.2 protocol specification, and the overall performance is more optimized.
|
Product information
|
| Bluetooth profile |
BLE V5.2
|
| Size |
99mm*34mm*17mm |
| Working band |
ISM 2.402～2.480GHz
|
| Antenna |
Built-in ceramic antenna/External antenna
|
| Protocol |
LL、SMP、L2CAP、ATT、GAP、GATT
|
| Signal pin |
RXD, TXD, RTS, CTS, GND |
| Effective Distance |
40m in open filed |
| Maximum transmission rate |
14Kbytes/Sec |
|
|
|
|
|
